特点

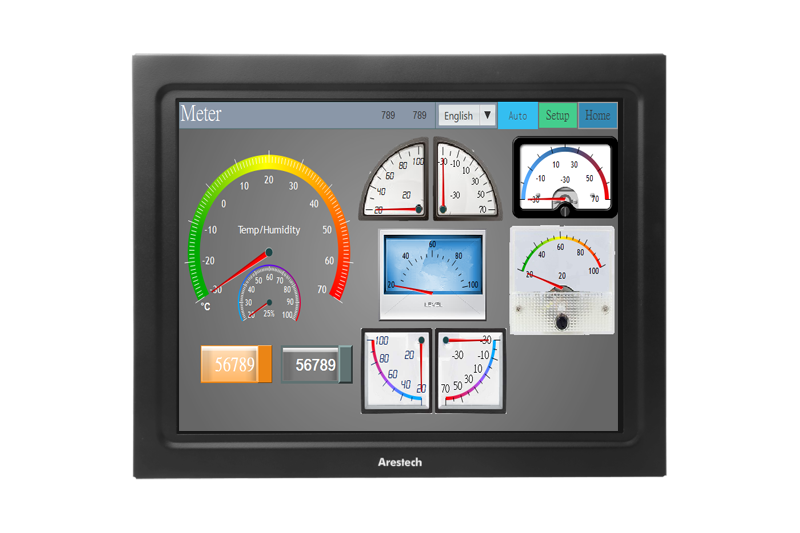

15” TFT XGA LED Panel with Projected Capacitive Touch Display
Intel® Core™ i5-4300U Processor
System Memory up to 8 GB DDR3L 1333 SDRAM
Two-finger Touch Control while Wearing Gloves
Internal SATA 2.5” HDD and mSATA Socket
Panel and VESA Mounting

应用

Human Machine Interface (HMI)
Factory / Manufacturing Automation
ATM / Self-service / Kiosk Applications
Vending Machine / Ticketing Machine

ModelPPC-156PPPC-156RProcessor SystemCPUIntel® Core™ i5-4300U ProcessorFrequencyDual-Core up to 1.9 GHzL2 CacheIntel® Smart Cache 3 MBSystem ChipsetN/ABIOSUEFIMemoryTechnologyDDR3L 1333 MHz SDRAMMax. Capacity8 GBSocket1 (204-pin SO-DIMM)DisplayPanel Size15” LCD PanelResolution1024 x 768 (XGA)Viewing Angle80 x 80 (H) x 80 x 80 (V)Brightness250 (cd/m2)Color Support16.7MContrast Ratio600:1Response Time8 (msec)HDMI2 HDMI 1.4a up to 1080 x 1920Three DisplayLCD Panel + 2 HDMITouchscreenTypeProjected Capacitive5-Wire ResistiveSurface Hardness7 Mohs3 MohsDurability-36 millions timesTransparency90% (±3%)80% (±3%)I/O InterfaceUSB4 USB 3.0Serial Port4 COM (Default: 2 RS-232/422/485, 2 RS-232)Digital I/O8-pin Digital I/O (DB-9 connector)Expansion2 Mini PCIe (1 full-size Mini PCIe or mSATA, selected by jumper setting; 1 half-size Mini PCIe)EthernetControllerGbE 1: 10/100/1000 Mbps (Realtek RTL8111G-CG)
GbE 2: 10/100/1000 Mbps, I218LM)AudioChipsetRealtek ALC662 High Definition Audio (HD)ConnectorLine out, Mic inStoragemSATA1 mSATA (shared with full-size mini PCIe)SATA II1 Internal 2.5” HDD/SSDPowerPower Supply VoltageSupports 9-36 V DC input(Phoenix Connector)Power AdapterAC-to-DC, 12 V @ 5 A, 60 WPower Consumption (Typical)1.65 A @ 12 V (19.8 W)Power Consumption (Max)3.06 A @12 V (36.7 W)BatteryLithium 3 V / 210 mAHEnvironmentOperating Temperature0~50° C (32~122° F) (Humidity: 50° C @ 80% RHNon- condensing)Storage Temperature-40~85° C (-40~185° F) (Humidity: 85° C @ 80% RH, Non-condensing)Humidity5~95% @ 40° C, Non-condensingVibration5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axisCertificationCE, FCC Class AGeneralIngress ProtectionIP54Dimensions (L x W x H)364.6 x 290.6 x 58.7 mm (14.35” x 11.44” x 2.31”)Weight4.61 kg (10.14 lb)4.55 kg (10.01 lb)Operating SystemWindows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04
