NOVEXX工业型打印机，

300/600dpi打印头；支持CF卡连接键盘脱机打印；兼容斑马ZPL操作软件；16M超大内存；全程电眼和双压力打印头设计，至少提高打印头和滚轴两倍寿命；可接驳USB与网线 。
适合工业批量不干胶、PET、PVC、卷装吊牌及布标。

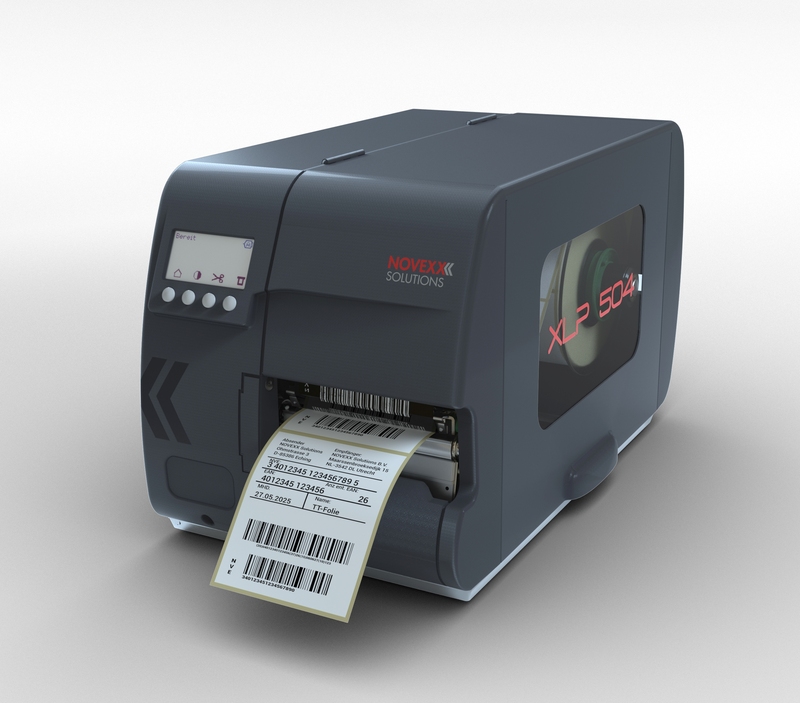

The XLP 50x Label Printer series is the perfect print solution for

medium label volume applications, available in 4 and 6 inch print

width. lt can be used with thermal transfer or thermal direct

technology and prints high quality barcodes, fonts, and graphics on

a large variety of label materials: (coated) papers, PE/PP or

cardboard. Due to its flexibility the XLP 50x is ready for numerous

applications and will support your identification and traceability

processes, mainly related to primary and secondary packaging in

the following industries

• Food manufacturing & processing

• General distribution and logistics

• Consumer goods

• General manufacturing

• Pharmaceuticals

• Electronics

• Ticketing

lndustrial all-round label printers for printing barcodes, fonts and graphics in high quality

Benefits with the XLP 50x

lncreased

Productivity

Reduced

Downtimes

High

Print Quality

Convenient

Maintenance

Ultimate Use

Friendliness

Quality without compromises

We trust in the quality of XLP 50x – developed and

manufactured in Germany, the XLP 50x series comes

with 2 years warranty. Convince yourself of its robust

housing and durable components that withstand harsh

industrial environments. These ensure a reliable,

continuous and efficient operation even under

demanding conditions.

Comprehensive Ribbon Portfolio

The recommended supplement for a perfect print result:

our thermal transfer ribbons are optimized for the

XLP 50x. Available from stock, a large selection of sizes

and qualities can be ordered with short lead times and

at low minimum order quantities.

Order your free sample kit today!

Operator Convenience

The included quick start guide enables an easy and fast

set up of the XLP 50x. Operators can effortlessy navigate

through the icon and text driven menu on a

XLP 50x SERIES

Ultimate User Friendliness

• Large display with different

colored backlights to

indicate printer status

• Operator friendly and

intuitive icon-driven menu

navigation

• Large window to keep an

overview of label and ribbon

roll filling level

• Various data interfaces for flexible

integration in existing IT infrastructure

lncreased Productivity

• Printing 1,000 labels at

203 dpi in less than eight

minutes *

• High flexibility for future

adjustments of your needs

via optional add-ons

Convenient Maintenance

• Quick shaft coupling print roller enables

fast cleaning without the need for tools

• Easily accessible print head

Reduced Downtimes

• Lift-up print module for quick and

comfortable label and ribbon

loading

• Qualified for high capacity

ribbon rolls up to 500 m length

High Print Quality

• Choose between 203, 300

or

600* dpi for high print quality

on a large selection of label

materials, sizes and shapes

• 600* dpi print resolution

enables printing of also tiny

fonts, demanding barcodes

and any types of symbols

• Self adjusting ribbon mandrels

to ensure stable ribbon web

tension for optimal print results

Technical specifications

XLP 504 XLP 506 XLP 504 XLP 506

PRINT OUTPUT LABEL ROLL SIZE

Print resolution (dpi) 203 300 600 203 300

Outer diameter

Core diameter

max. 210 mm

38 mm, 76 mm, 101 mm (1.5", 3", 4")

Time per 1,000

labels in min.*

7 9 17 9 11

LABEL WIDTH RIBBON SIZE

Basic 15 to 120 mm 50 to 185 mm Length max. 500 m max. 500 m

Dispenser 30 to 110 mm n/a Width 25 to 110 mm 54 to 172 mm

PRINT WIDTH PRINTING METHOD

max. 105.7 mm max. 168 mm Thermal direct/thermal transfer

LABEL TYPE OPTIONS

Converted, self-adhesive label material on roll or fan folded: paper,

thermal transfer/direct, plastic film material (e.g. PE, PP, PA, PVC)

Dispenser with internal

rewinder, cutter, rewinder,

I/O board RS 422/485

Cutter,

I/O board RS
