特点

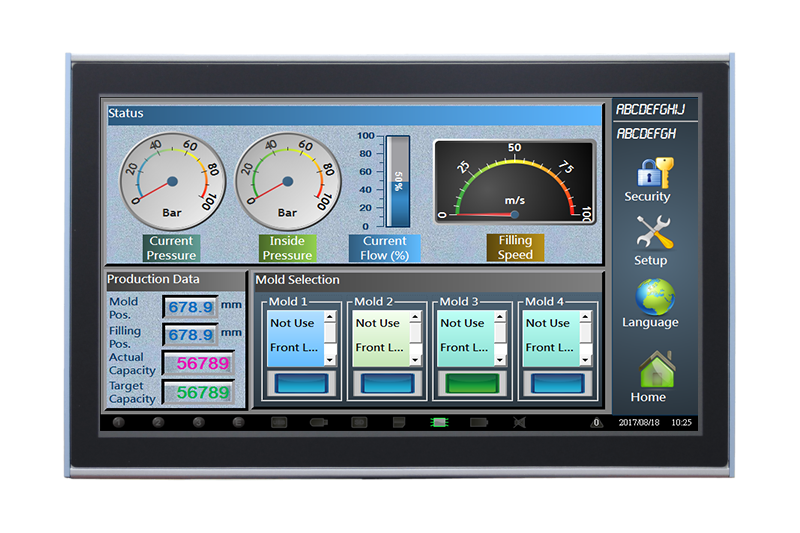

18.5” HD LED Panel with Projected Capacitive Touch Display
Intel® Core™ i5-4300U Processor
Two-finger Touch Control while Wearing Gloves
Completely Flat Front Design
Panel and VESA Mounting

应用

Food Industry Management System
Animal Feed Production Facility
Signage, Kiosk, Dashboard

Machine Automation

Model		PPC-186P
Processor System	CPU	Intel® Core™ i5-4300U Processor
	Frequency	Dual-Core up to 2.9 GHz
	L2 Cache	Intel® Smart Cache 3 MB
	System Chipset	By CPU
	BIOS	UEFI
Memory	Technology	DDR3L 1333 MHz SDRAM
	Max. Capacity	8 GB
	Socket	1 (204-pin SO-DIMM)
Display	Panel Size	18.5” LED Panel
	Resolution	1366 x 768 (WXGA)
	Viewing Angle	85 x 85 (H) x 80 x 80 (V)
	Brightness	250 (cd/m2)
	Color Support	16.7M
	Contrast Ratio	1000:1
	Response Time	3.6 (msec)
	HDMI	2 HDMI 1.4a up to 1920 x 1200
	Dual Display	LCD + HDMI
Touchscreen	Type	Projected Capacitive
	Surface Hardness	7
	Transparency	90% (±3%)
I/O Interface	USB	4 USB 3.0
	Serial Port	4 COM (3 RS-232, 1 RS-232/422/485)
	Digital I/O	4-bit DI, 4-bit DO (DB-9 connector)
	Expansion	2 Mini PCIe (1 Full-size, 1 Half-size)
Ethernet	Controller	GbE 1: 10/100/1000 Mbps (Realtek RTL8111G) GbE 2: 10/100/1000 Mbps (Intel® I218LM)
Audio	Chipset	Realtek ALC662 High Definition Audio (HD)
	Connector	Line out, Mic in
Storage	SATA II	1 Internal 2.5” HDD/SSD
Power	Power Supply Voltage	9-36 V DC input(Phoenix Connector)
	Power Adapter	AC-to-DC, 12 V @ 5 A, 60 W
	Power Consumption (Typical)	TBD
	Power Consumption (Max)	TBD
	Battery	Lithium 3 V / 210 mAH
Environment	Operating Temperature	0~50° C (32~122° F) (Humidity: 80% RH non-condensing)
	Storage Temperature	-40~85° C (-40~185° F) (Humidity: 80% RHNon- condensing)
	Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
	Certification	CE, FCC Class A
General	IP Protection	IP54
	Dimensions (L x W x H)	455 x 284.2 x 59.1 mm (17.91” x 11.19” x 2.32”)
	Weight	6 kg (13.2 lb)
	Operating System	Windows 7/8/10, WS7E/P, WE8S
