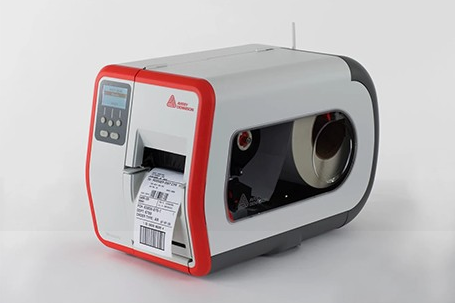

The ADTP1 enables you to quickly, accurately, and intelligently identify items and cartons and move merchandise throughout the supply chain. This breakthrough solution amps up barcode and RFID printing, encoding, verifying, cutting and stacking activities with double the printing and encoding speeds and throughput 200-300% faster than alternative systems.

Use the ADTP1 for:

• Carton and pallet labeling
• Retail compliance
• Item-level marking and tracking
• Work-in process tracking
• Hang tag printing
• Asset-tracking

• NON-STOP RFID PRINT/ENCODE
  The ADTP1 features patented non-stop print/encode technology that's up to
  three times faster than traditional stop-to-encode printers.
  Additionally, its exclusive integrated RFID EPC verifier helps ensure defective
  tags are eliminated.
  REDUCE VENDOR CHARGEBACKS
  Optional barcode verifier overstrikes “bad labels and tags” for virtually 100%
  scanability, leading to fewer chargebacks due to bad bar codes. Barcode
  Assured™, our proprietary fail-safe dot shifting autocorrect feature, also helps
  reduce the incidence of unscannable barcodes.*
  PRODUCTIVE PROCESSING
  ADTP1 has the largest internal supply capacity available in its class, which cuts
  roll change needs by as much as 50%.**
  The three-color backlit display provides instant visual identification of printer
  status. Internal liner take-up eliminates waste accumulating on floors for faster
  and easier liner disposal.
  SUSTAINABLE LABELING
  You can decrease your environmental footprint with our EcoCapacity+™ thin
  liner labels. Switching to EcoCapacity+™ significantly reduces water and energy
  use, solid waste production and C02 emissions.**

• SPECIFICATIONS
  DIMENSIONS
  Height: 13.8” (351mm)
  Width: 11.5” (292mm)|
  Depth: 21.5” (546mm)
  WEIGHT
  36 lbs (16.4kg)
  SHIPPING WEIGHT
  43 lbs (19.5kg)
  PRINTING METHOD
  Thermal Direct or Thermal Transfer
  BAR CODES
  One-dimensional—UPCA +2/+5, UPCE +2/+5, EAN8 +2/+5,
  EAN13 +2/+5, EAN128 Interleaved 2 of 5,Extended Code 39,
  Codabar (NW7), Code 128, Code 16K, Code 93, MSI, Postnet,
  Intelligent Mail, GS1 Databar
  Two-dimensional—PDF417, MaxiCode, Data Matrix (ECC-200),
  Quick Response (QR) Code, Aztec
  STANDARD FONTS
  Bitmap—Standard, Reduced, Bold, OCRA-like, CG Triumvirate,
  and CG Triumvirate Bold TrueType ® —EFF Swiss Bold, Supports
  downloaded double-byte TrueType and bitmap fonts, allowing for
  international character sets
  FONT MAGNIFICATION
  1x to 7x
  4 to 250 pt. for scalable/TrueType fonts
  MEDIA SENSING METHOD
  Edge: Die Cut, Black Mark, Aperture, Attacher Hole
  Center: Die Cut, Black Mark, Attacher Hole
  KEYPAD/DISPLAY
  Five-button keypad control LCD Graphical Dot Matrix
  PRINTER CONTROL LANGUAGES
  MPCL, MLI
  PRINTER WARRANTY
  One (1) year parts and labor
  Full written warranty statement available on request
  PRINTHEAD WARRANTY
  One (1) million inches or six (6) months, whichever occurs first
  SUPPLIES
  Avery Dennison supplies are recommended.
  SUPPLY TYPES
  Tags and adhesive labels (paper or synthetic) in roll or fanfold format,
  perforated or continuous supply
  SUPPLY SIZES
  Width: 0.75–4.25” (19.1 to 108.0 mm)
  Length: 0.32”–17.5“(8mm to 445mm)
  Max Roll Diameter: 9.375” OD (238 mm) on 3” Core (76mm) or 4”
  Core (102mm)
  TYPICAL SUPPLY ROLL LENGTH
  7,874” (200m) with standard media
  11,811” (300m) with EcoCapacity+
  SUPPLY THICKNESS
  5.5–13.5 mils (0.14-0.33mm)
  RFID
  RFID ENCODER
  Optional, EPCglobal UHF Class 1 Gen 2 / ISO 18000-63 (formerly
  18000-6C). Supports worldwide UHF RFID frequency ranges.
  RFID VERIFIER
  Optional, integrated post-encode-and-print reader module.
  Validates actual Encoded data against requested data.
  ENVIRONMENTAL RANGES
  OPERATING TEMPERATURE
  Thermal Direct 40° to 104° F (4° C to 40° C)
  Thermal Transfer 40° to 95° F (4° C to 35° C)
  STORAGE
  15° to 120° F (-9° C to 49° C)
  HUMIDITY/OPERATING AND STORAGE
  5% to 90% non-condensing
  PERFORMANCE
  POWER SOURCE
  100–240 VAC with auto select 50/60 Hz
  Optional 24 VDC (U.S. and Canada Only)
  PRINT SPEED
  2.5 ips (64 mm/sec)
  4 ips (102 mm/sec)
  6.0 ips (152 mm/sec)
  8.0 ips (203 mm/sec)
  10.0 ips (254 mm/sec)—only with 203 dpi print head
  12.0 ips (305 mm/sec)—only with 203 dpi print head
  COMMUNICATIONS
  STANDARD COMMUNICATION PORTS
  USB 2.0 Device Port (1 port, B receptacle), USB 2.0 Host Port (2
  ports, A receptacle), RS-232C Serial Port (DB-9F, DTE pin out,115.2K
  baud max speed)
  WIRED NETWORKING
  802.3u Ethernet, 10/100 Mbps, RJ-45 connector
  WIRELESS NETWORKING
  Optional 802.11 a/b/g/n dual band (2.4GHz & 5 GHz), WPA2, 802.11i
  compliant
  OPTIONS & COMPANION PRODUCTS
  OPTIONS
  300 dpi print head
  Peel mode with on demand sensor and internal liner take-up***
  ADK Script programming for special applications
  +24V DC-powered (Cart ready)***
  COMPANION PRODUCTS
  - Avery Dennison ® Monarch ® 933™ High Speed Cutter***
  - Avery Dennison ® Monarch ® 928™ Stacker***
  - Avery Dennison ® Monarch ® 935™ Rewind
  - Avery Dennison ® Monarch ® 938™ Barcode Verifier***
  - Avery Dennison ® Monarch ® 939I™ Intelligent Keyboard
